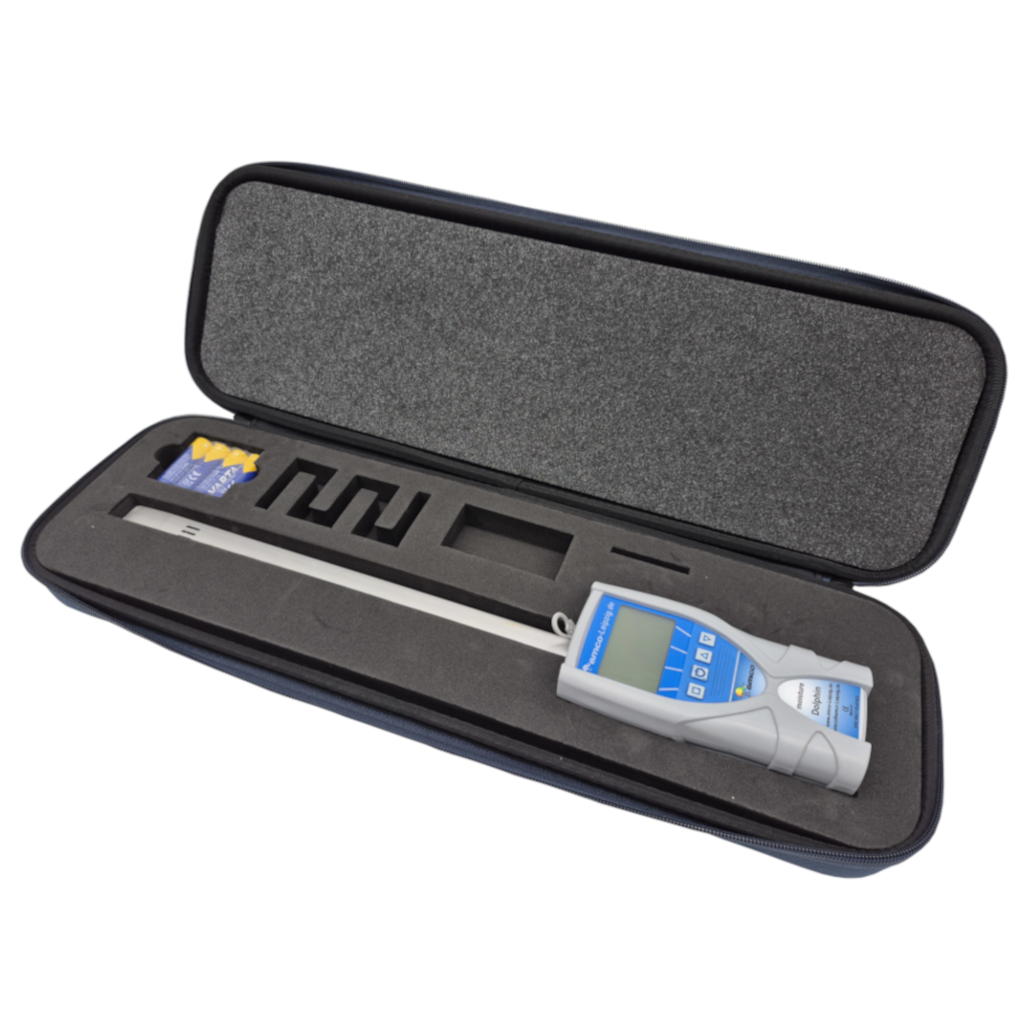

emco Dolphin P Sword Sensor for Humidity and Paper Moisture
The emco Dolphin P is a mobile hand-held device for determination of relative moisture and temperature of paper, wood, textiles and other hygroscopic materials. With characteristic moisture curves the absolute water content is calculated and displayed.
In addition to that it can be used for automatic climate monitoring of print rooms and paper stores.
The device shows the relation between climate, moisture and paper measuring technique.
Features
- Very solid hand-held device
- Quick assimilation (t90 < 10 s)
- Paper and wood equilibrium moisture content is temperature-compensated
- Characteristic curves for calculation of the water content
- Entering of user-defined characteristic curves possible
- Hold function
- Manual data logging
- Automatic data logging for 10.000 values with description of the measuring point
- PC interface incl. software and optional with printer
- Determination of the dew point
- Relative and absolute moisture
- Automatic climate monitoring
- Supplier-memory-management
Applications
- Determination of moisture for paper and paperboard
- Incoming goods inspection at stacks for paper processors like printing houses, paper retailers and corrugated paper manufacturers
- Quality control
Technical data
Measuring range
- relative humidity: 1 % – 100 % rH
- temperature: -10 °C – 60 °C, 14 °F – 140 °F
- dew point: -55 °C – 60 °C, -67 °F – 140 °F
- moisture: 0 g/m³ – 130 g/m³
Resolution
- relative humidity: 0.1 % rH
- temperature: 0.1 °C
- dew point: 0.1 °C
- moisture: 0.1 g/m³
Exactness of work side calibration
- relative humidity: ±1.5 % rH (at 25 °C)
- temperature: ±0.4 °C (at 25 °C)
Accuracy of the factory calibration – Adjustment time t90
< 10 s
Measurement memory
approx. 10000 measurements
Languages menu
DE, EN, FR, IT, ES, RU, PT, CS, PL
Auto log time
free to choose 3 s – 4 h
Power connection
Battery: 4 pieces 1.5 V AA Alkaline
Product information
- Delivery time: 1-2 weeks
- Article number: EZH2401
