emco CMMMoisture Measurement for Pulp Sheets

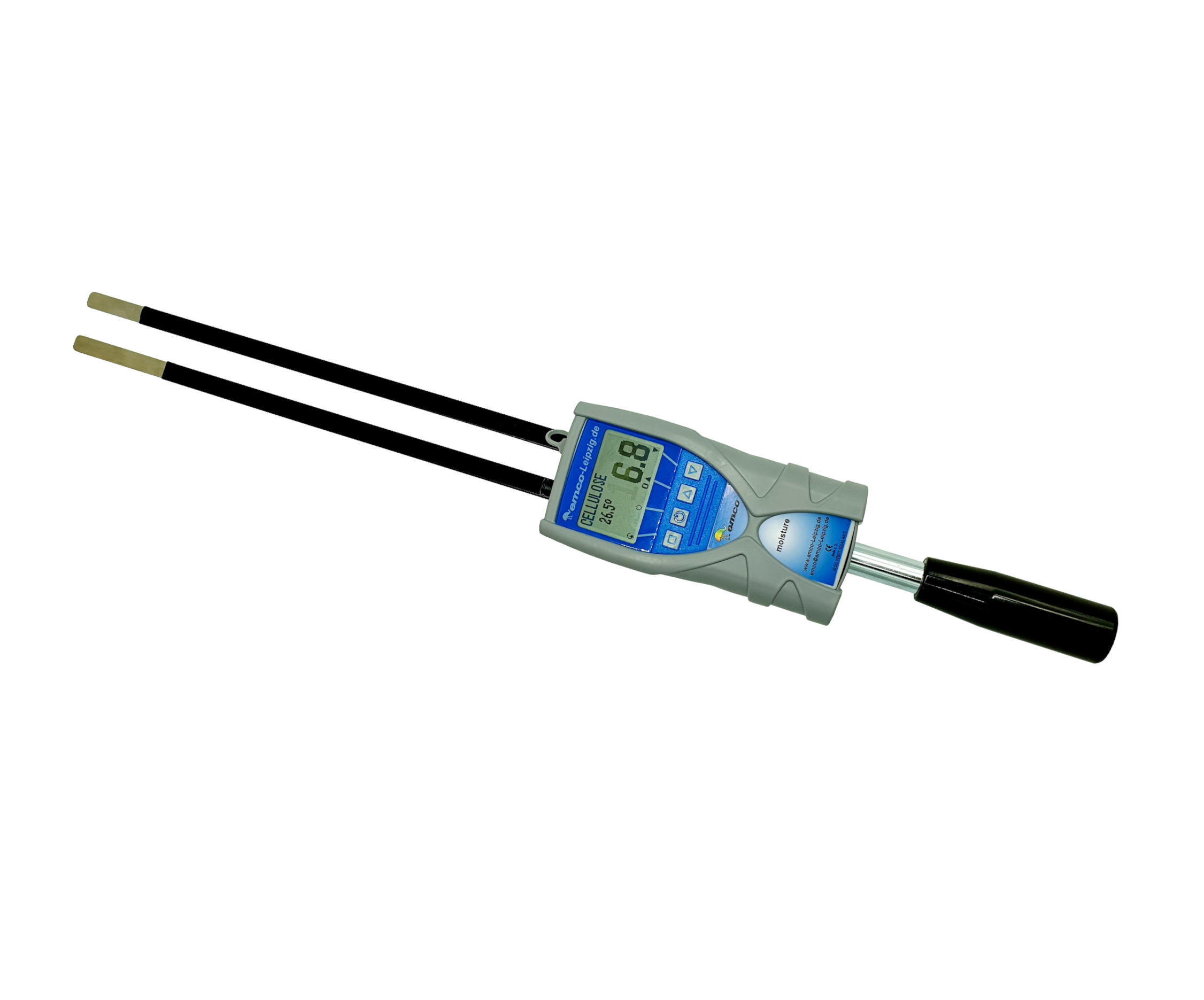

The emco CMM is a hand-held measuring instrument for the absolute determination of the water content of pulp sheets in a stack. It allows non-destructive, precise measurement of the water content in seconds.

The two sensors of the measuring device are inserted between the sheets of the pulp stack and provide a signal of conductivity. A calibration (characteristic curve) is used to calculate the measured value as a percentage by weight of water.

With the certificate and the test equipment, a device check is possible for each device at any time on site.

Features

  • Non-destructive, precise measurement of the water content in weight percent within seconds
  • Application for different types of pulp
  • Mobile, robust and handy
  • emco certificate and test equipment
  • Interface to emco Solution web database for automatic data transfer
  • Characteristic curves in the pulp density range 450 – 900 kg/m3 for bleached and unbleached pulps from sulphate and sulphite process available,
  • Extendable by further characteristic curves for new varieties

Applications

  • Incoming goods inspection
  • Outgoing goods inspection
  • Quality control
  • Detection of moisture accumulation in stacks of cellulose sheets

Technical data

Measuring range
6 % to 40 % moisture (material dependent)

Display resolution

0.1 % water content

Calibration

In reference to the drying oven, a calibration line is recorded for each pulp grade, which assigns a measured value of weight percent water to each signal value. Calibration lines for pulp density range 450 – 900 kg/m³ for bleached and unbleached pulps from sulphate and sulphite process available; extendable by further calibration lines for new sorts.

Operating temperature

0 °C to +50 °C

Storage temperature

-20 °C to +60 °C

Temperature measurement

infrared

Temperature compensation

automatic

Menu languages

DE, EN, FR, IT, ES, RU, PT, CS, PL

IP code

IP 40

Power supply

batteries (AA Alkaline, 4x)

Weight and dimensions

685 g (incl. batteries), 575 x 75 x 46 mm³

Scope of delivery

Device with Bluetooth module and handlebar (dismountable), wooden case for transport and storage, emco calibration certificate with test equipment for device check, batteries

Optional accessories

Data terminal for data transfer and access to the emco-Solution-web database, USB data interface with LogMemorizer software incl. USB cable, portable printer

Product information

  • Delivery time: 1-2 weeks
  • Article number: 2235
