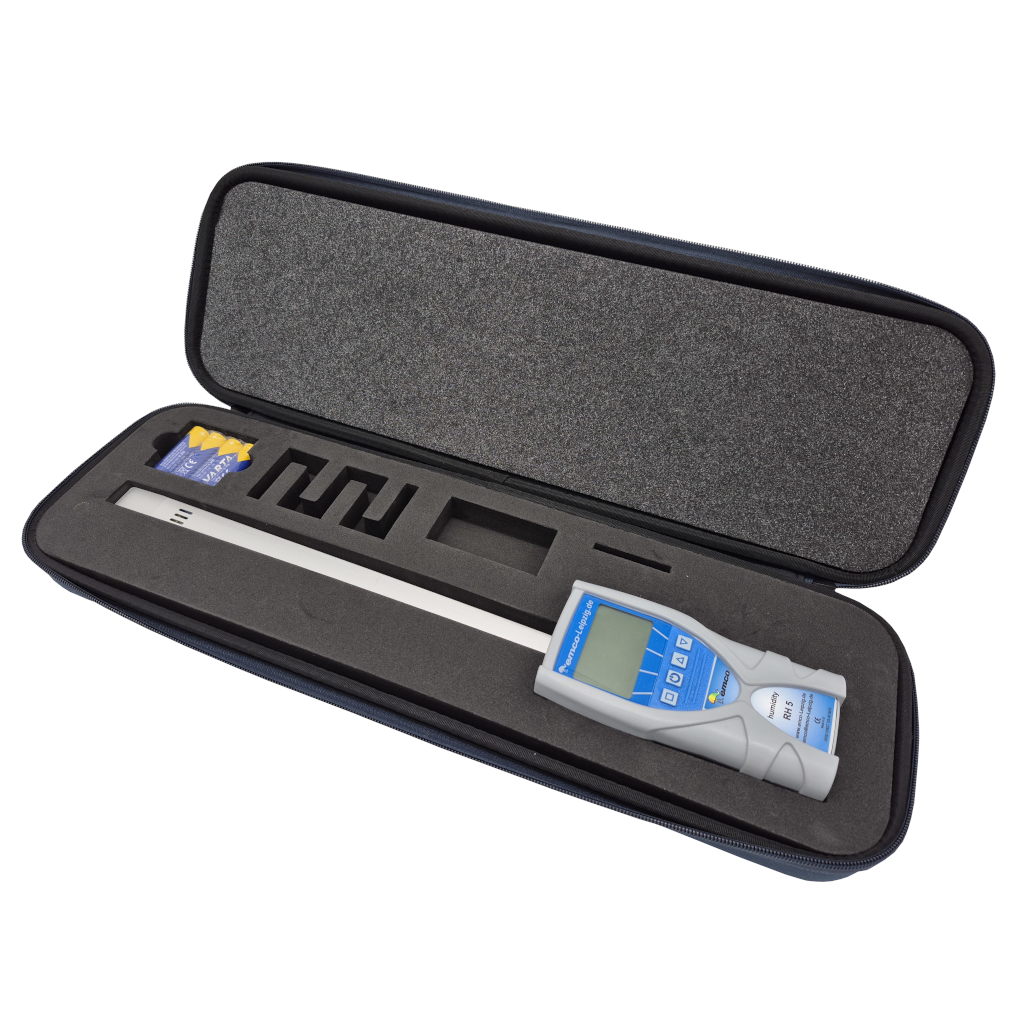

emco RH 5 Sword Sensor for Humidity, Temperature and Dew Point
The emco Sword Sensor RH 5 is a hand-held measuring instrument for the mobile determination of relative humidity, temperature and dew point in stacks and environments.
It is well suited for automatic climate monitoring of printing rooms and paper warehouses.
Features
- Highly stable measuring device
- Fast and user-friendly measurement in paper stacks
- Fast conditioning of the sword probe to the environment
- Temperature compensation
- Simple data storage
- Automatic detection of climatic conditions
Applications
- Incoming goods inspection at stacks for paper processors like printing houses, paper retailers and corrugated paper manufacturers
- Quality control
Technical data
Measuring range
- relative humidity: 0.1 % rH
- temperature: -10 °C – 60 °C, 14 °F – 140 °F
- dew point: -55 °C – 60 °C, -67 °F – 140 °F
Resolution
- relative humidity: 1 % – 100 % rH
- temperature: 0.1 °C
- dew point: 0.1 °C
Exactness of work side calibration
- relative humidity: ±1.5 % rH (at 25 °C)
- temperature: ±0.4 °C (at 25 °C)
Accuracy of the factory calibration – Adjustment time t90
< 10 s
Measurement memory
approx. 10000 measurements
Languages menu
DE, EN, FR, IT, ES, RU, PT, CS, PL
Auto log time
free to choose 3 s – 4 h
Power connection
Battery: 4 pieces 1.5 V AA Alkaline
Product information
- Delivery time: 1-2 weeks
- Article number: EZH2533
Downloads / Documents
Product request
