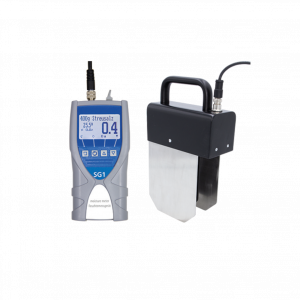

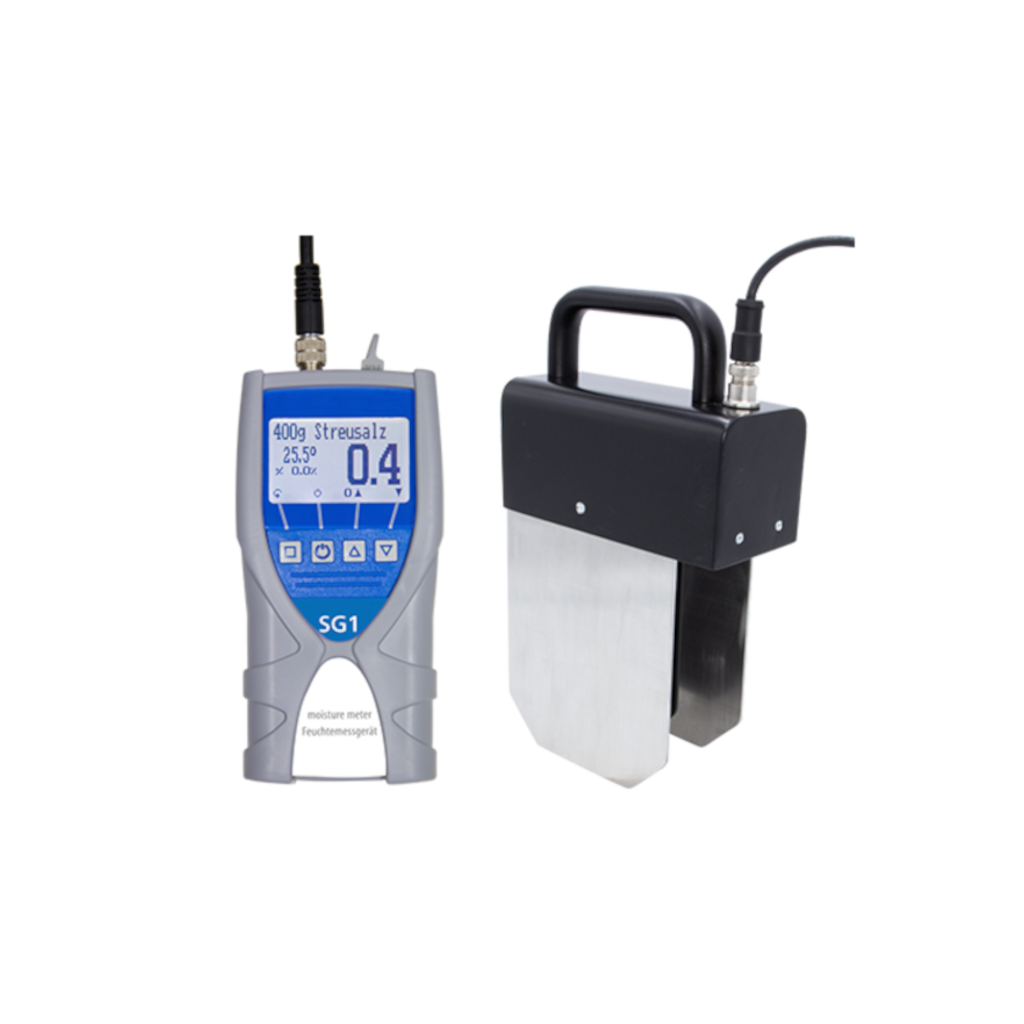

emco SG1 Moisture meter for bulk goods and powder
The emco SG1 is a moisture meter for bulk goods and powders with insertion sensor for determining the water content of various materials such as foundry sands, additives and much more.
Features
- Sensor technology determines dielectric material properties
- Material can trickle freely out of the sensor (no blocking)
- Can be used in buckets, sacks, heaps, chutes and much more
- Large measuring range of detectable water content
- Fast and user-friendly measurement
- Very fast adjustment behaviour
- Simple data storage
- Extremely robust and easy to clean
Applications
- Incoming goods inspection
- Process monitoring in production
- Monitoring during processing and storage
- Final inspection and quality control
Measurable bulk materials and powders
Foods
- Flour
- Emulsifiers
- Fillers
- Kaolin powder
- Mineral powder
- Additives
- Polydextrose
Building materials
- Sand
- Quartz sand
- Gravel
- Cement
- Topsoil
- Plaster
- Levelling fill
- Insulation fill
- Gypsum
Raw materials
- Ore
- Coal dust
- Foundry sand
- Alumina
- Al2O3 powder
- Additives
- Chalk
- Stone powder
- Stone granulate
- Casting powder
- Titanium oxide
- Lime
Fillers
- Granulates
- Pigments
- Plastics
- Recycled granulates
- Waste plastics
- Plastic flakes
- Recyclates
- Regranulate
- Fillers
- Rock flour
- Silicates
- Oxides/hydroxides
- Silicic acid
- Silica gel
Other
- Drying agents
- Rising agents
- Dyes
- Talcum powder
- Aggregates
- Alloy additives
- Polishing granules
- Medicinal granules
- Pharmaceutical granules
- Grains
- Cork
- Washing powder
- Surfactants
- Octabin
Technical data
Measuring range
1 – 50 % water content (depending on material)
Display resolution
0.1 % water content
Operating temperature
0 °C – 40 °C
Temperature compensation
automatic
Menu languages
DE, EN, FR, IT, ES, RU, PT, CS, PL
Power supply
4 x 1.5 Volt AA Alkaline batteries
Memory
approx. 10,000 measurement values
IP code
IP40
Weight and dimensions
270 g, 150 x 75 x 30 mm³
Scope of delivery
emco SG1 with insertion sensor, USB interface with LogMemorizer Software incl. USB cable, rubber cover and batteries
Product information
- Delivery time: 1-2 weeks
- Article number: 2210
