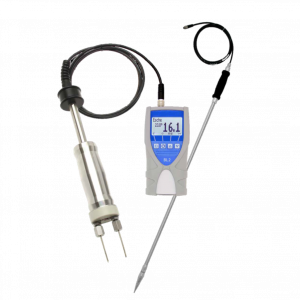

BL2 Universal moisture meter for biomass material

The BL2 is a measuring device for determining the moisture content of round timber
biomass material, wood chips, sawdust and wood pellets.

Features

For determining the water content of wood chips with an insertion probe or ram electrode for round timber, split logs, wood chips, sawdust, wooden pellets, shredded olive stones, hay and straw bales
Fast and highly accurate measurement thanks to a non-destructive method
Single point measurement
Standard calibration for different types of material
Automatic recording and storage with date and time; data input possible
Can be combined with the emco Recovered Paper Management database for automatic data transfer

Applications

Incoming goods inspection
Quality control

Technical data

Measuring range

8 % to 60 % moisture (kind dependent)

Display resolution

0.1 % (ram electrode), 0.5 % (insertion probe) moisture

Operating temperature

0 °C to + 50 °C

Storage temperature

-20 °C to +60 °C

Temperature compensation

automatic

Temperature specification

°C and °F

Menu languages

DE, EN, FR, IT, ES, RU, PT, CS, PL

Power supply

battery-operated, 1.5 Volt AA Alkaline (4 pcs.)

Storage of values

approx. 10,000 measurement values

IP code

IP40

Weight and dimensions

270 g (incl. batteries), 150 x 75 x 30 mm³ (device)
710 g, 1150 x 35 x 35 mm³ (insertion probe),
360 x 45 x 45 mm³ (ram electrode)

Scope of delivery

BL2 moisture meter, calibration certificate with test equipment for checking the device, device case, rubber protective cover, batteries

External sensors

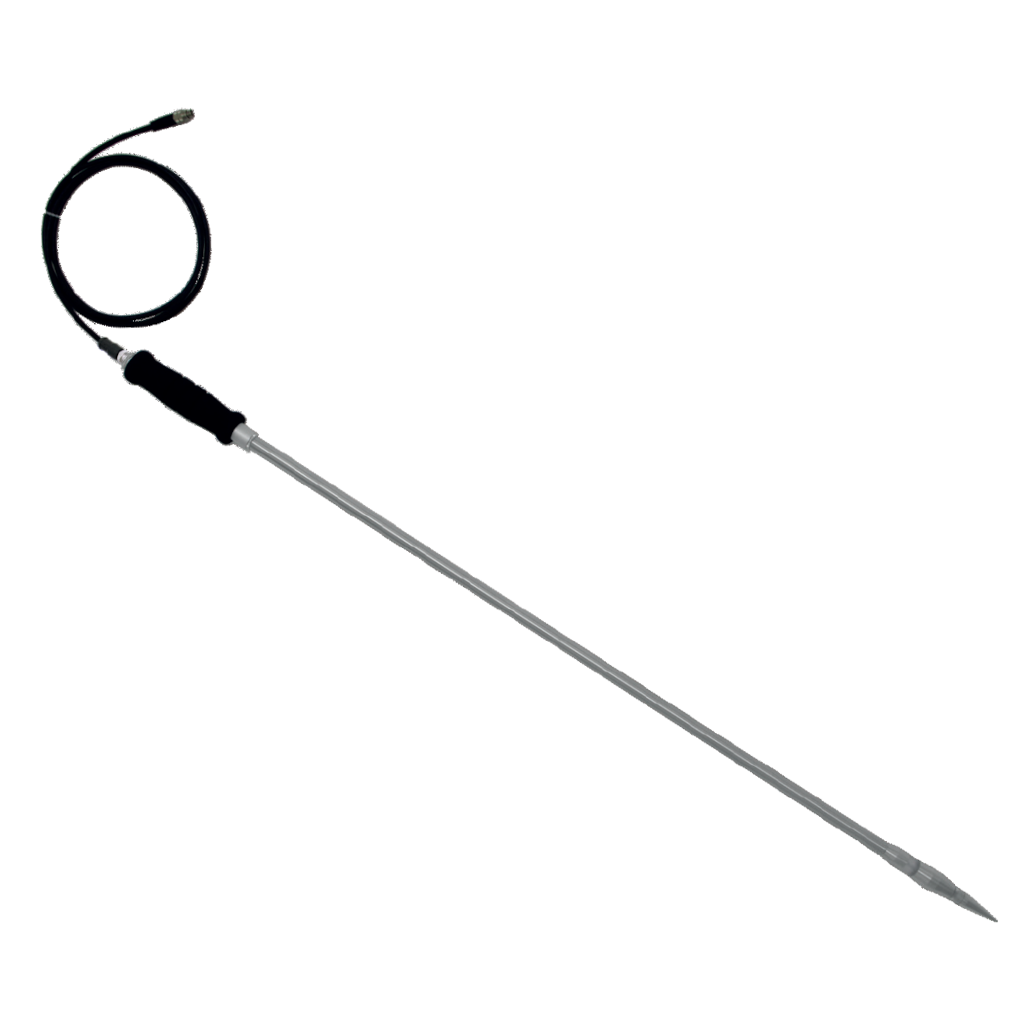

insertion probe

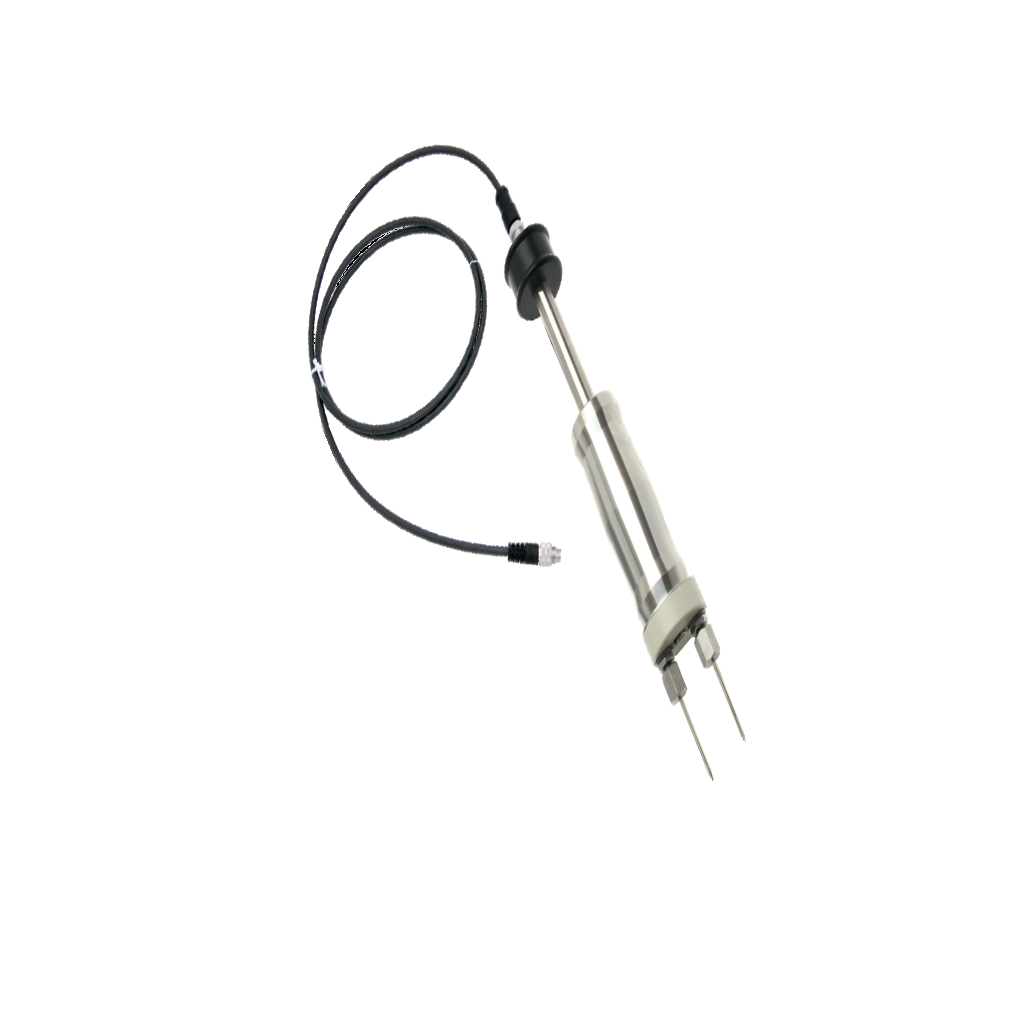

ram electrode

Optional accessories

Bluetooth module, USB data interface with LogMemoriser software incl. USB cable, data terminal for data transfer and access to the emco solution web database, portable printer
