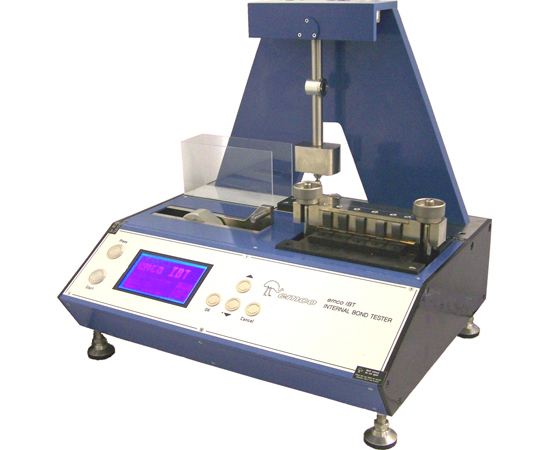

emco IBT - Internal Bond Tester
Scott-Bond method
Internal Bond Strength for paper, paperboard and cardboard
emco IBT - Internal Bond Tester
- Entire equipment with integrated sample preparation
- Scott-Bond method according to TAPPI T 569 and ISO 16260
- For determining of internal bond strength of paper and structural strength at composite materials
With emco IBT an objective quality agreement between customer and supplier with practice-oriented accuracy can be realized.
emco IBT - Internal Bond Tester
emco IBT realizes a dynamic measuring principle to determine the internal bond strength of paper, cardboard and compound systems. Simultaneously all significant influences, sample preparation, climate, adhesive tape, material characteristics of angles and anvils, as well as choosable sample preparation terms (pressure and pressing time) are specified considered.
emco IBT
representative material testing
- Cardboard
- Packaging material
- Printing paper
- Label paper
- Release paper
- Newsprint
- Decore paper and pre-impregnated paper
- Speciality paper and other compounds
emco IBT - fields of application
- Reliable and distinct incoming goods inspection as extensive material test
- Production control as reliable and extensive material test
- Production management (among others refining)
- Quality control with specified standards between customer and supplier
- Product development (technology optimisation, substitution of material)
emco IBT - Internal Bond Tester
Extensive material characteristic is shown in internal bond strength:
- Fibre composition
- Fibre bonding
- Layer bonding
- Refining (fibre structure and fibrillation)
- Sizing
- Wet strength bonding
emco IBT - Functionality
- Assembling and functionality of this test method for determining the internal bond strength follows TAPPI standard T 569 and ISO 16260 (Scott type).

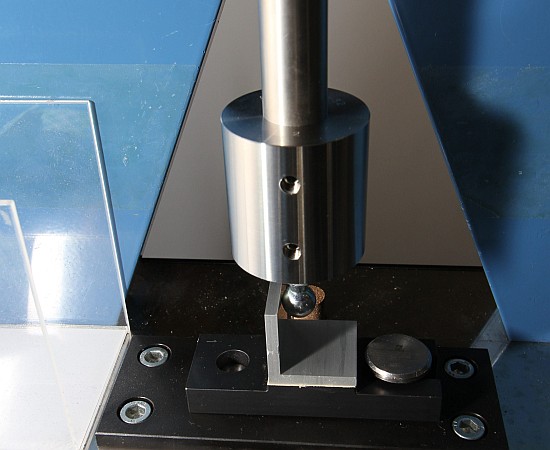

- The pendulum, with a defined amount of energy, hits against the precision angle whose horizontal part is bonded to the sample.
- While impact of the pendulum the entire surface of the sample is splitted.
emco IBT - Functionality
- The detracted energy of the pendulum correlates with the structural strength (Internal Bond) of the sample.
-
The measuring of the energy absorbed to rupture a specimen will be conducted by two methods:
- Measuring of the amplitude of the pendulum
(potential energy) - Measuring of the velocity of the pendulum
(kinetic energy)
- Measuring of the amplitude of the pendulum
emco IBT - Sample Preparation
- The preparation of a specimen will be performed according to TAPPI T 569 and ISO 16260
- Sample preparation integrated for 5 samples simultaneous (glueing, pressing, cutting)
- A sample of paper or paperboard will be assembled by different layers fixed by double sided adhesive tape.
- The effective area is 25.4 mm x 25.4 mm
(1 inch x 1 inch). - Processor controlled clamping pressure and press time
emco IBT - Video
emco IBT - Measuring Ranges
- 4 measuring ranges 52.5 J/m2 to 2100 J/m2 (including Scott Bond low and Scott Bond high)
- Internal bond strength as potential energy Epot and kinetic energy Ekin
- electronic display with selectable unit:
J/m2, 10-3 ft-lb/in2, mJ/in2 - Automatic statistic functions for measuring series (average value, standard deviation)
- Monitoring of the climatic conditions
- Output of measuring data and parameters to PC
emco IBT - Measuring Conditions
All essential measuring conditions are considered:
- Testing atmosphere
- Accurate sample cutting
- Adhesive tape
- Alloy (modulus of elasticity), surface and production accuracy of angles
- Alloy, surface and production accuracy of anvils
- Contact pressure, Pressing duration
- Measuring range
Uniform, standardised test conditions are essential for the measuring result of internal bond strength following the Scott Bond method.

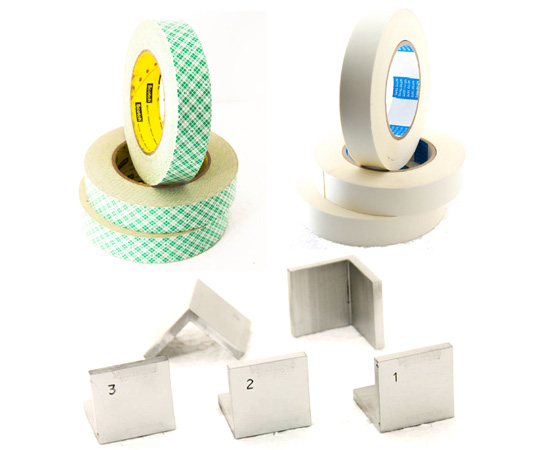

emco IBT - Expendable items
- Adhesive tape
- Aluminium accuracy angles
emco IBT - Service
-
Menu operated examination through the user
Self calibrating und adjustment of splitting energy
Automatic pendulum test according to DIN 51 222
Processor controlled alignment of device - Service technician of emco
- Operator schooling on site
emco IBT - Characteristics
- Digital measurement device
- Compact device: sample preparation integrated (glueing - pressing - cutting)
- Processor controlled press-on pressure and period
- Compensation of friction influences, reached by an innovative measuring principle
- 4 measuring ranges 52.5 J/m2 to 2100 J/m2 (including Scott Bond low and Scott Bond high)
- Monitoring of the climatic conditions
emco IBT - Characteristics
- Electronic display with selectable unit
J/m2; 10-3 ft-lb/in2 or mJ/in2 - Automatic statistic functions for measuring series (average value, standard deviation)
- Data transfer via RS-232 and USB adapter with data transfer protocol
- Equipment check and calibrating mode are led by menu (pendulum adjustment, number pendulum swing, pendulum energy), comparison to certificate
